WNK85
WNK
Product Description
Applicable media | Liquid, gas, seam |
Pressure range | 3MPa-6MPa |
Pressure measurement | Gauge pressure, sealing pressure |
Output | 0.5-4.5V |
Power Supply | 5VDC |
Accuracy(lineraity, hysteresis, repeatability) | 1%FS |
Working temperature | -20~70°C |
Storage temperature | -40~85°C |
Temp drift(zero) | ±0.15%FS(-20~70°C) |
Temp drift(full range) | ±0.15%FS(-20~85C) |
Electrical connection | Packard/ Cable Outlet |
Mechanical connection | 7/16-UNF (female) |
Housing material | Brass |
Factory Direct Sale, Support Customization
1. Thread can be customized1/8’’NPT male, 1/4’’NPT male/Female, 7/16’’-20 UNF male/Female
2. Output can be customized4-20mA, 0-5V, 0-10V, 0.5-4.5V
3. Power supply can be customized10-30VDC, 8-30VDC, 15-30VDC, 5VDC
- Automobile, Compressor and Refrigeration Industry
- Engineering machinery
- Pressure control and monitor
- Water treatment system
- Hydraulic and Pneumatics
- HAVC and BAS Control
- Pump, fitness equipment, household appliances
- Factory Automation
- Fluid Control and Instrumentation Systems
Mechanical Dimension

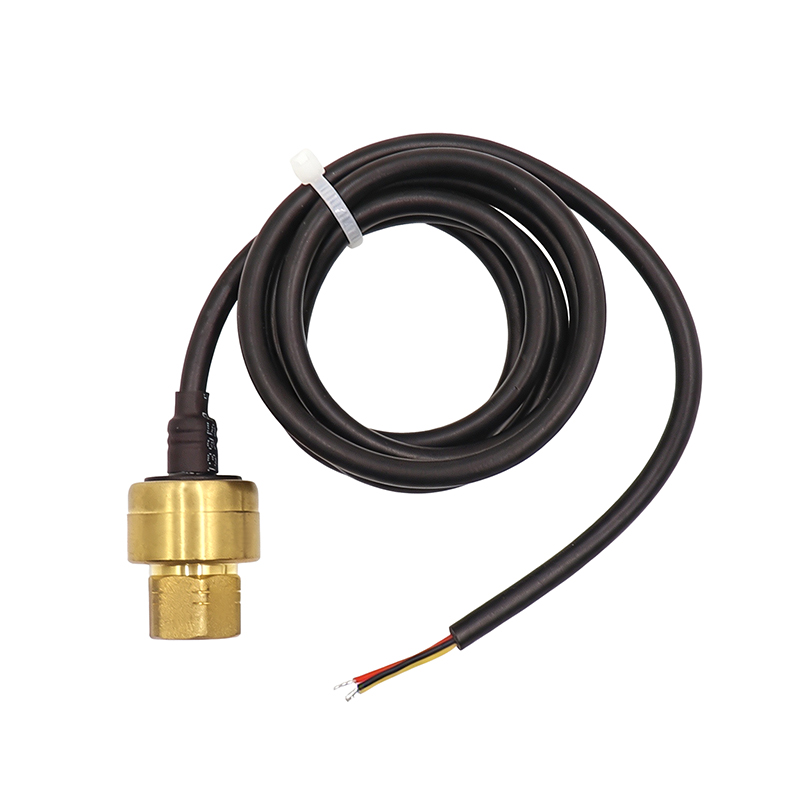

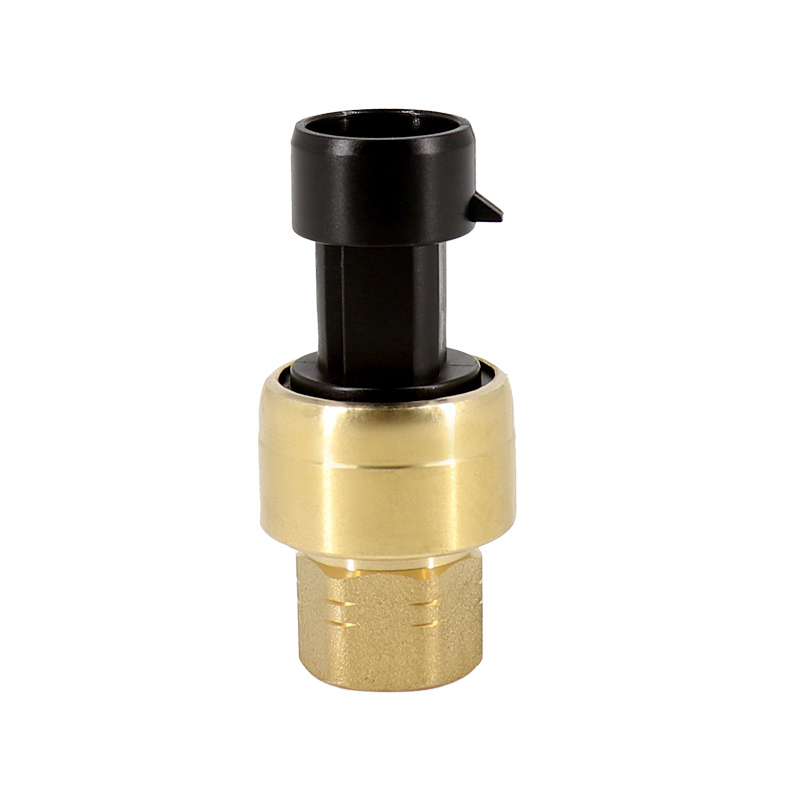

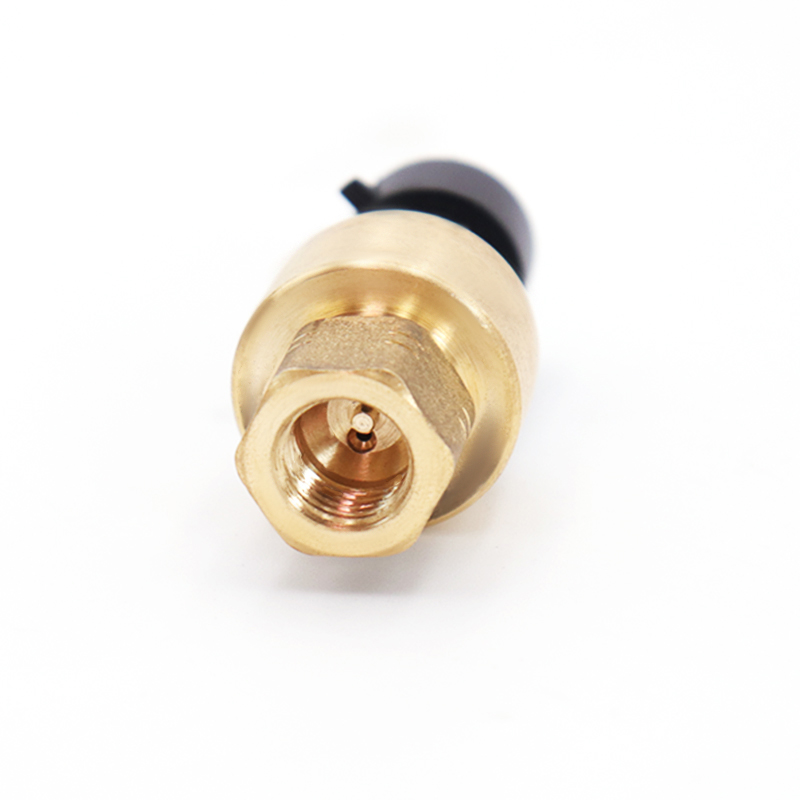

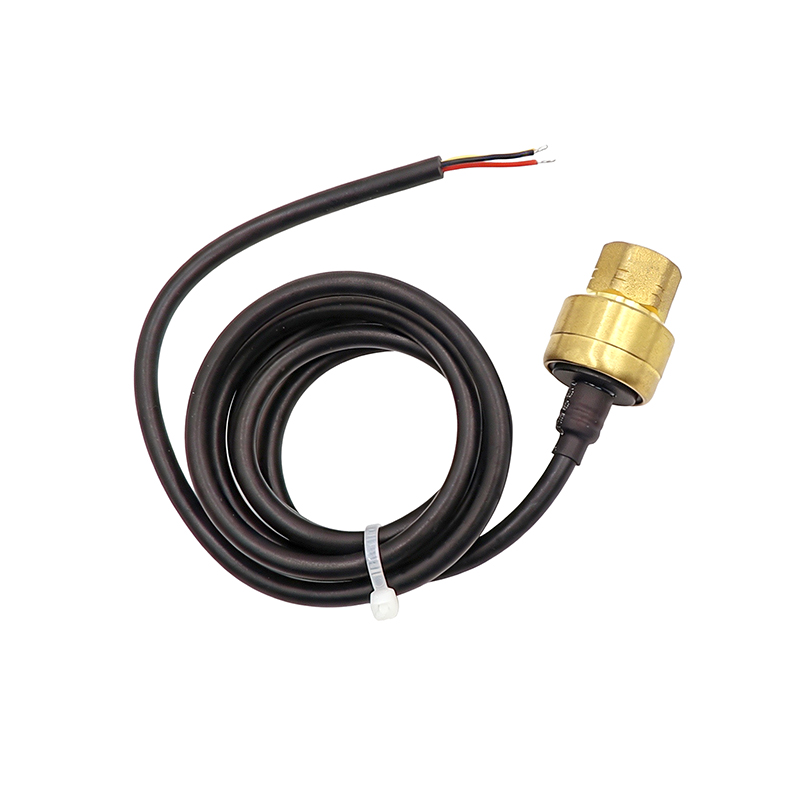

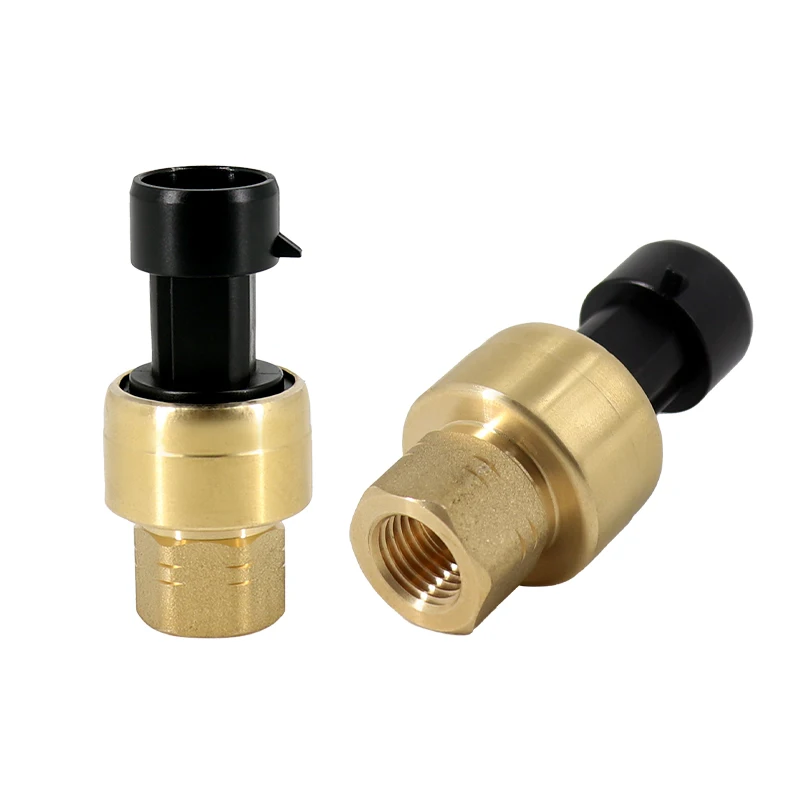

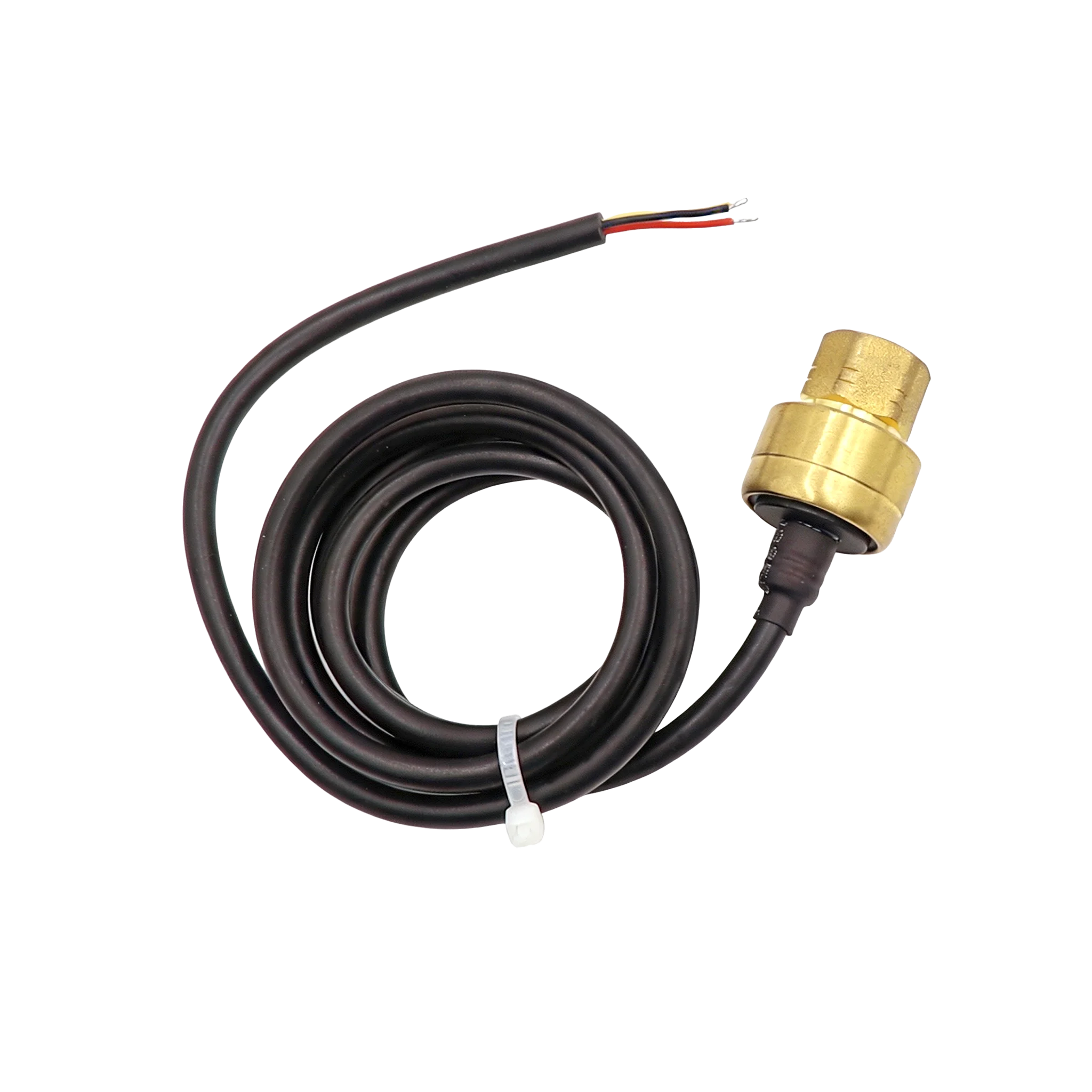

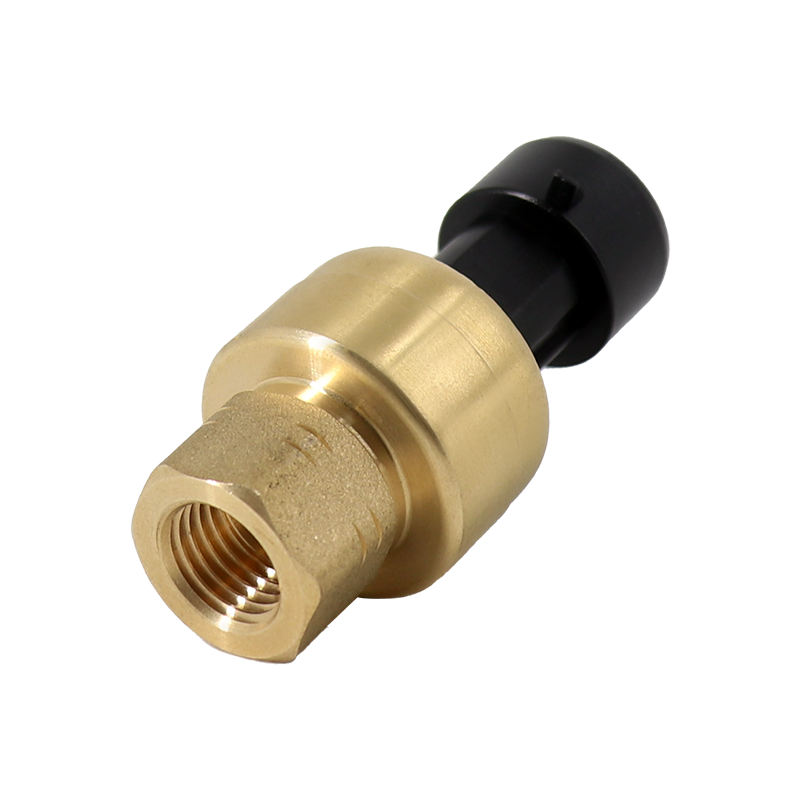

Product Show
